Technical Specifications

Engine

Engine

Front longitudinal 60° V12

light alloy cylinder block and head

Timing gear

2 valves per cylinder,

single overhead camshaft per cylinder bank

Bore and stroke

60 x 58.8 mm

Unitary and total displacement

166.25 / 1,995 cc

Compression ratio

7.5:1

Maximum power

110 bhp at 6,000 rpm

Transmission

Single-plate clutch,

5-speed gearbox + reverse, conventional differential

Chassis

  Elliptical-section steel tubes

Front suspension

Independent withtransverse leaf spring and

hydraulic dampers

Rear suspension

Semi-elliptic longitudinal leaf springs

Kerb weight

800 kg

Fuel tank

80 litres


Coachwork

001S, 003S, 005S


Total

3

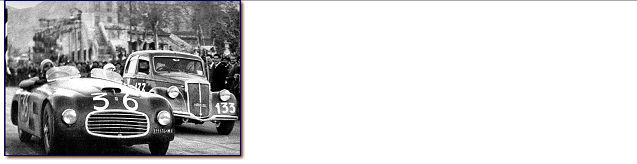

Ferrari 166 S s/n 001S

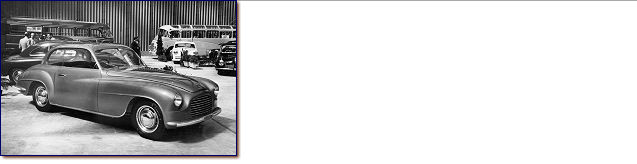

Ferrari 166 S s/n 003S

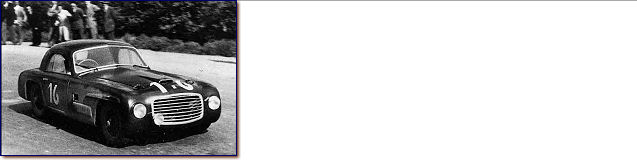

Ferrari 166 S s/n 005S
