Technical Specifications |
Engine |
Front longitudinal 60° V12 |
light alloy cylinder block and head | |
Timing gear |
2 valves per cylinder, single overhead camshaft per |
cylinder bank |
Bore and stroke |
65 x 58.8 mm |
Unitary and total displacement |
195.085/2,341.02 cc |
Compression ratio |
7.5:1 |
Maximum power |
130 bhp at 6,000 rpm; 57 bhp/litre |
Transmission |
Multi-plate clutch, 5 speed-gearbox + reverse, |
conventional differential | |
Chassis |
Elliptical-section steel tubes |
Front suspension |
Independent with transverse leaf spring |
and hydraulic dampers | |
Rear suspension |
Live axle, longitudinal semi-elliptic leaf springs, |
hydraulic dampers and anti-roll bar | |
Wheelbase, front and rear track |
2,500/1,271/1,250 mm |
Kerb weight |
950 kg |
Fuel tank |
82 litres |
|
Test Sheet |
n/a |

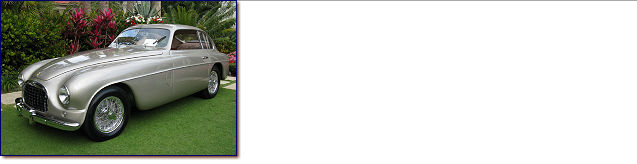

Touring Coupe |
1 | 081S, |

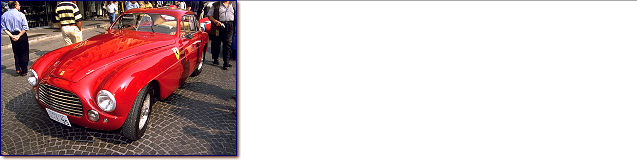

Touring Berlinetta |
2 | 0085S, 0123S |

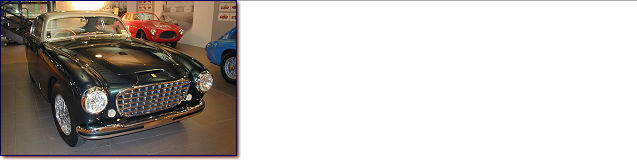

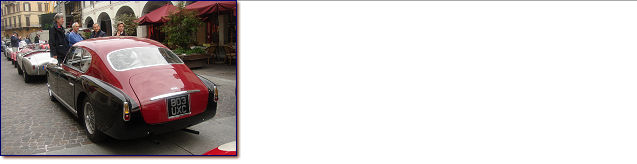

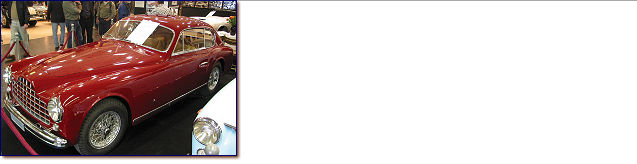

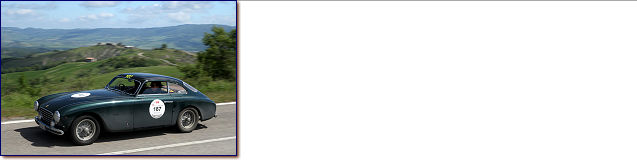

Vignale Coupe |
12 | 083S, 0091S, 0095S, 0097S, 0099S, 0103S, |
0113S, 0119S, 0127S, 0151S, 0181EL, 0209EL |
Vignale Berlinetta |
1 | 0115S |

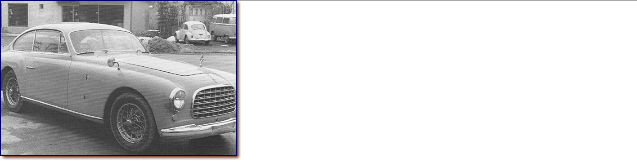

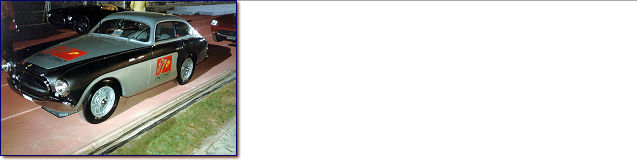

Ghia Coupe |
8 | 0087S, 0089S, 0093S, 0105S, 0109S, 0101S, |
0113S, 0129S |
Ghia Coupe 2+2 |
3 | 0121S, 0133S, 0183EL |
Motto Coupe |
1 | 0117S |
|
Total |
28 |
