Technical Specifications


Engine

213

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

206 kW (280 hp) at 7600 rpm

239 hp 7000 - 77x58 - 3286 - 6507


Valve actuation

single overhead camshaft per bank

two valves per cylinder

Fuel feed

three or six 40 Weber DCN/3 carburettors

Weber 6*40 DCN3

Weber 6*40 DCNG

Weber 3*40 DCZ6

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

563

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Tyres


Front

  195 or 205 x 14

Rear

  195 or 205 x 14


Borrani

RW 3847 - 6-1/2" x 14" 32

RW 4039 7" x 14" 32

Compagnolo/starburst

6-1/2" x 14"


Bodywork

Type

two-seater berlinetta

Length

4325 mm

Width

1725 mm

Height

1245 mm

Wheelbase

2400 mm

Front track

1377 mm

Rear track

  1393 mm

Kerb weight

1100 kg


Performance


Top speed

258 km/h


Total

448
 Previous page
 Next page
Up

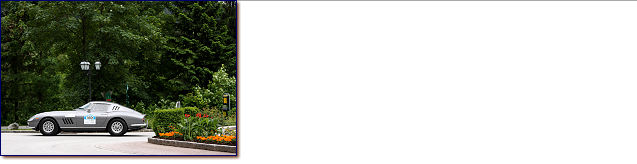

Ferrari 275 GTB s/n 06705

LHD
3 carb
steel

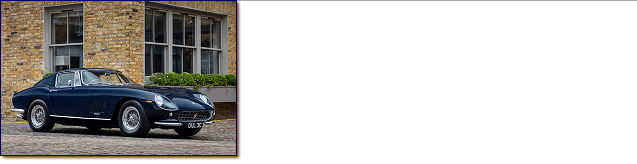

Ferrari 275 GTB shortnose, s/n 06705

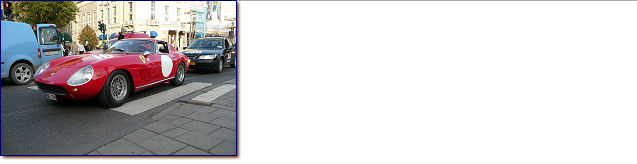

Ferrari 275 GTB s/n 06707

RHD
3 carb
Steel (Alloy)

Ferrari 275 GTB s/n 06709

LHD
3 carb
Steel

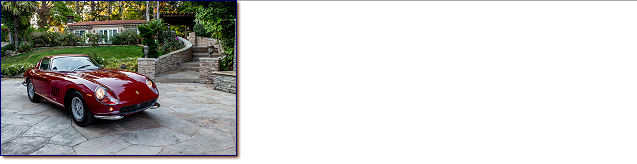

Ferrari 275 GTB s/n 06711

LHD
3 carb
steel

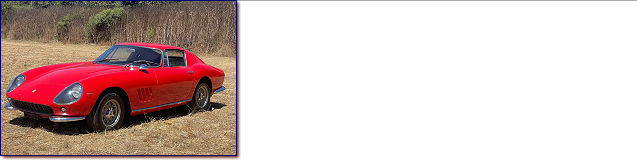

Ferrari 275 GTB s/n 06711

Ferrari 275 GTB s/n 06715

LHD
3 carb
steel

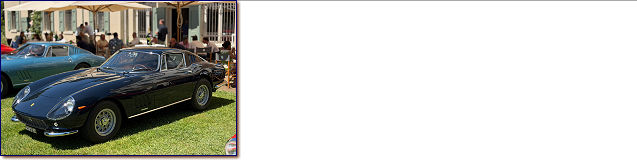

Ferrari 275 GTB s/n 06717

LHD
3 carb
Steel

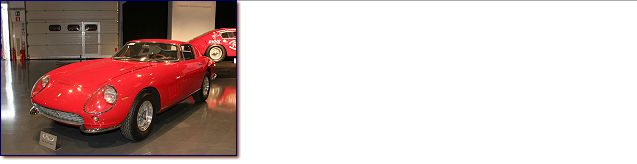

Ferrari 275 GTB s/n 06617

Ferrari 275 GTB s/n 06719

RHD
3 carb
Steel

275 GTB s/n 6719

Ferrari 275 GTB s/n 06721

LHD
6 carb
steel


Ferrari 275 GTB s/n 06723

RHD
6 carb
steel

Ferrari 275 GTB s/n 06725

LHD
3 carb
steel

Ferrari 275 GTB s/n 06731

LHD
6 carb
steel


Ferrari 275 GTB s/n 06733

LHD
3 carb
steel

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124  Sold $16500

Ferrari 275 GTB s/n 06741

LHD
3 carb
steel

Ferrari 275 GTB s/n 06749

LHD
3 carb
steel


Ferrari 275 GTB s/n 06751

LHD
3 carb
steel

Ferrari 275 GTB s/n 06761

LHD
3 carb
steel

Ferrari 275 GTB s/n 06765

LHD
3 carb
steel


Ferrari 275 GTB s/n 06773

LHD
3 carb
steel


500 Superfast s/n 6673SF

Ferrari 275 GTB s/n 06779

LHD
6 carb
steel


Ferrari 275 GTB s/n 06785

LHD
6 carb
steel

raced

Ferrari 275 GTB s/n 06787

LHD
3 carb
steel


Ferrari 275 GTB s/n 06787

Ferrari 275 GTB s/n 06789

LHD
3 carb
steel


330 GT s/n 6689GT rebodied GTO Style

Ferrari 275 GTB s/n 06791

LHD
3 carb
steel


Ferrari 275 GTB shortnose, s/n 06691

Ferrari 275 GTB s/n 06827

LHD
3 carb
steel

Ferrari 275 GTB/2 Shortnose s/n 06827

Ferrari 275 GTB s/n 06831

LHD
3 carb
steel

Ferrari 275 GTB s/n 06839

LHD
6 carb
steel


1964 Ferrari 330 GT 2+2 s/n 6539GT

Ferrari 275 GTB s/n 06841

LHD
3 carb
steel


Ferrari 275 GTB s/n 06881

LHD
6 carb


275 GTB shortnose, s/n 06881

Ferrari 275 GTB s/n 06887

LHD
3 carb
steel


Ferrari 275 GTB s/n 06891

LHD
3 carb
steel


Ferrari 275 GTB s/n 06893

LHD
3 carb
steel


Ferrari 275 GTB s/n 06895

LHD
3 carb
steel


Ferrari 275 GTB s/n 06897

LHD
3 carb
steel

Ferrari 275 GTB s/n 06899

LHD
3 (6) carb
steel


Ferrari 275 GTB s/n 06901

RHD
3 carb
steel


275 GTB s/n 06901



Ferrari 275 GTB s/n 06903

LHD
3 carb
steel

275 GTB/2 Shortnose s/n 06703

Ferrari 275 GTB s/n 06905

LHD
3 carb
steel

Ferrari 275 GTB shortnose, s/n 06705

Ferrari 275 GTB s/n 06907

LHD
3 carb
steel


Ferrari 275 GTB s/n 06913

LHD
3 carb
steel

Ferrari 275 GTB s/n 06915

LHD
3 carb
steel


Ferrari 275 GTB s/n 06917

LHD
3 carb
steel

Ferrari 275 GTB s/n 06617

Ferrari 275 GTB s/n 06925

LHD
6 carb
alloy

Ferrari 330 GT 2+2 s/n 6625GT

Ferrari 275 GTB s/n 06931

LHD
3 carb
steel


Ferrari 275 GTB s/n 06931

Ferrari 275 GTB s/n 06933

RHD
3 carb
steel


Ferrari 330 GT 2+2 s/n 6533GT - Lot 124  Sold $16500

Ferrari 275 GTB s/n 06935

LHD
3 carb
steel


Ferrari 275 GTB s/n 06941

RHD
6 carb
steel

Ferrari 275 GTB s/n 06943

LHD
3 carb
steel

long nose conversion

Ferrari 275 GTB s/n 06949

LHD
3 carb
steel

Ferrari 275 GTB s/n 06951

LHD
3 carb
steel

Ferrari 275 GTB  s/n 06967

LHD
3 carb
steel

Ferrari 275 GTS s/n 06867
