Technical Specifications


Engine

213

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

206 kW (280 hp) at 7600 rpm

239 hp 7000 - 77x58 - 3286 - 6507


Valve actuation

single overhead camshaft per bank

two valves per cylinder

Fuel feed

three or six 40 Weber DCN/3 carburettors

Weber 6*40 DCN3

Weber 6*40 DCNG

Weber 3*40 DCZ6

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

563

Frame

tubular steel

Front suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Rear suspension

independent, unequal-length wishbones,

coil springs over telescopic shock absorbers,

anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Tyres


Front

  195 or 205 x 14

Rear

  195 or 205 x 14


Borrani

RW 3847 - 6-1/2" x 14" 32

RW 4039 7" x 14" 32

Compagnolo/starburst

6-1/2" x 14"


Bodywork

Type

two-seater berlinetta

Length

4325 mm

Width

1725 mm

Height

1245 mm

Wheelbase

2400 mm

Front track

1377 mm

Rear track

  1393 mm

Kerb weight

1100 kg


Performance


Top speed

258 km/h


Total

448
 Previous page
 Next page
Up

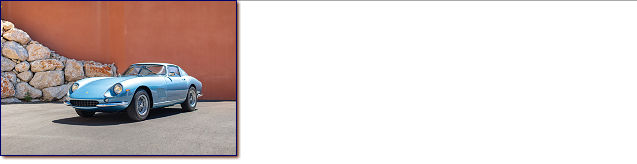

Ferrari 275 GTB s/n 08395

LHD
3 carb
steel

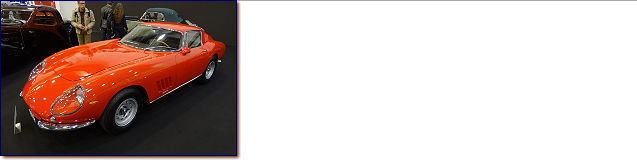

Ferrari 275 GTB s/n 08395


Ferrari 275 GTB s/n 08403

LHD
6 carb
steel

Ferrari 275 GTB s/n 08407

LHD
3 carb
steel

Ferrari 275 GTB s/n 08413

LHD
3 carb
steel

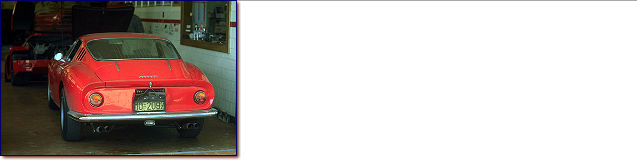

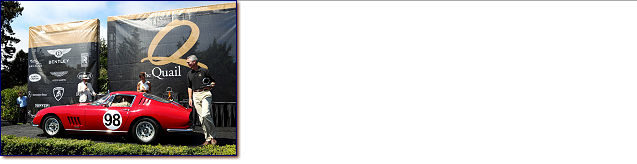

275 GTB s/n 8413

Ferrari 275 GTB s/n 08419

LHD
3 carb
steel

missing engine

Ferrari 275 GTB s/n 08423

LHD
6 (3) carb
steel

Ferrari 275 GTB s/n 08431

LHD
6 carb
steel

Ferrari 275 GTB s/n 08439

LHD
3 carb
steel

Ferrari 275 GTB s/n 08445

LHD
3 carb
steel (alloy)

Ferrari 275 GTB s/n 08451

LHD
3 carb
steel

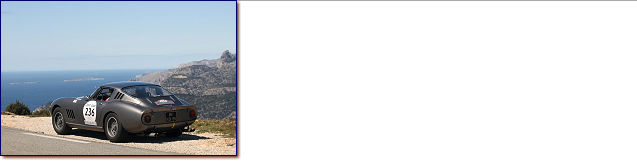

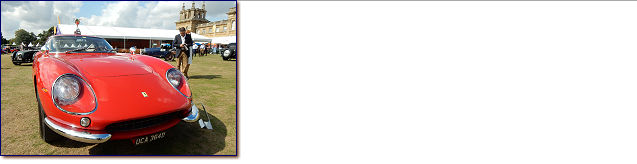

Ferrari 275 GTB, s/n 08451

Ferrari 275 GTB s/n 08457

LHD
3 carb
steel

Ferrari 275 GTB s/n 08465

LHD
3 carb
steel

Ferrari 275 GTB s/n 08471

LHD
6 carb
steel

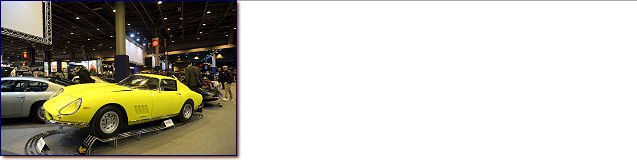

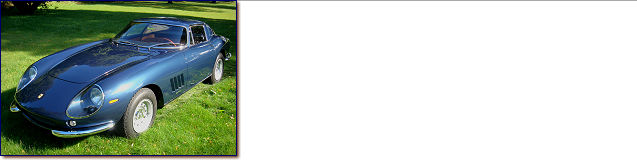

Ferrari 275 GTB s/n 08371

Ferrari 275 GTB s/n 08477

LHD
6 carb
steel


Ferrari 275 GTB s/n 08483

LHD
6 carb
steel

Ferrari 275 GTB s/n 08489

LHD
3 carb
steel

Ferrari 275 GTB s/n 08493

LHD
6 (3) carb
steel


Ferrari 275 GTB s/n 08497

LHD
3 carb
alloy

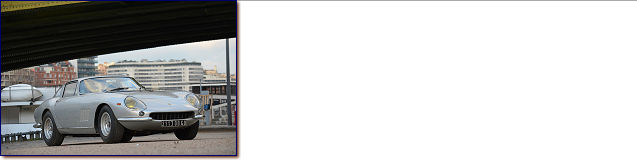

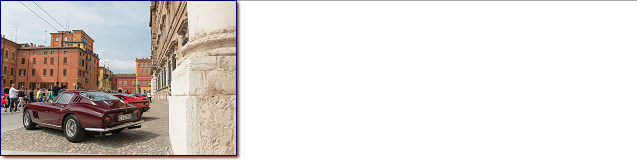

Ferrari 275 GTB long nose s/n 08497

Ferrari 275 GTB s/n 08501

LHD
6 (3) carb
steel



Ferrari 275 GTB s/n 08503

RHD
6 carb
steel

Ferrari 275 GTB s/n 08507

LHD
3 carb
steel

Ferrari 275 GTB s/n 08511

LHD
3 carb
steel

Ferrari 275 GTB s/n 08513

LHD
6 (3) carb
alloy (steel)

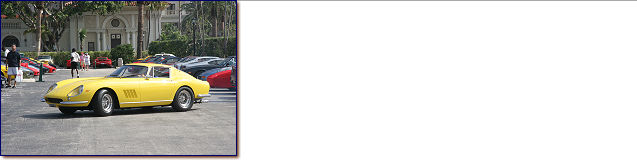

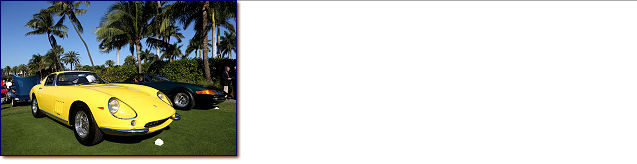

275 GTB s/n 8413

Ferrari 275 GTB s/n 08517

LHD
6 (3) carb
alloy (steel)

Ferrari 275 GTB s/n 08521

LHD
3 carb
steel

Ferrari 275 GTB s/n 08525

LHD
6 carb
steel

Ferrari 275 GTB s/n 08539

LHD
3 carb
steel

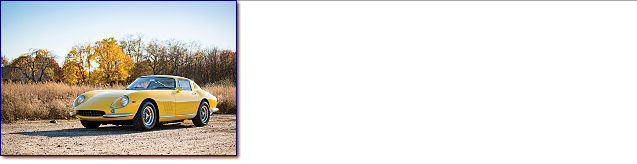

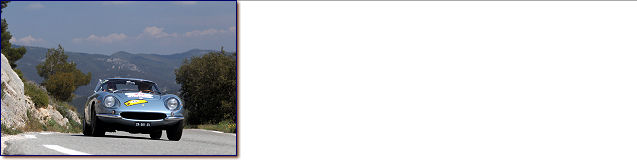

Ferrari 275 GTB2 Longnose s/n 08539

Ferrari 275 GTB s/n 08541

LHD
3 carb
steel

Ferrari 275 GTB s/n 08545

LHD
6 carb
steel

Ferrari 275 GTB s/n 08549

LHD
3 carb
steel

Ferrari 275 GTB s/n 08557

LHD
6 carb
steel

Ferrari 275 GTB s/n 08567

RHD
3 carb
alloy (steel)

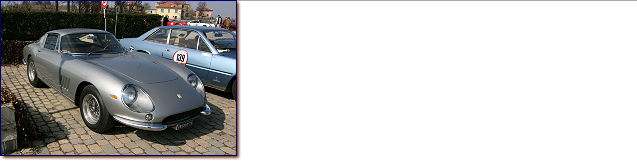

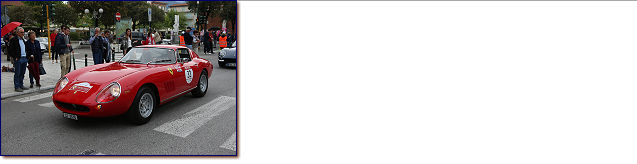

330 GT 2+2 series II, #8267

Ferrari 275 GTB s/n 08573

LHD
3 carb
steel

Ferrari 275 GTB s/n 08577

LHD
6 carb
steel

Ferrari 275 GTB s/n 08579

RHD (LHD ?)
6 carb
steel

275 GTB/2 Longnose s/n 08579 red/black

Ferrari 275 GTB s/n 08583

LHD
6 carb
steel

Ferrari 275 GTB s/n 08593

LHD
3 carb
steel

Ferrari 275 GTB s/n 08597

LHD
3 carb
steel

Ferrari 275 GTB long nose s/n 08497


Ferrari 275 GTB s/n 08603

RHD
3 (6) carb
steel (alloy)

Ferrari 275 GTB s/n 08611

LHD
6 carb
steel

Ferrari 275 GTB s/n 08615

LHD
3 carb
steel

Ferrari 275 GTB s/n 08619

LHD
3 carb
steel

Ferrari 275 GTB s/n 08625

LHD
3 carb
steel

Ferrari 275 GTB s/n 08633

LHD
3 carb
steel

Ferrari 275 GTB s/n 08633

Ferrari 275 GTB s/n 08641

LHD
3 carb
steel

Ferrari 275 GTB s/n 08647

RHD
3 carb
steel

Ferrari 275 GTB, s/n 08647

Ferrari 275 GTB s/n 08659

LHD
3 carb
steel

275 GTB/2 Longnose s/n 08659 (ex-King Hussein)

Ferrari 275 GTB s/n 08669

LHD
6 carb
steel

Ferrari 275 GTB s/n 08675

LHD
3 carb
steel

Ferrari 275 GTB s/n 08677

LHD
3 carb
steel
