Technical Specifications


Engine

Front longitudinal 60° V12,

 light alloy cylinder block and head

Timing gear

2 valves per cylinder,

 single overhead camshaft per cylinder bank

Bore and stroke

77 x 71 mm

Unitary and total displacement

330.62/3,967.44 cc

Compression ratio

8.8:1

Maximum power

300 bhp at 6,600 rpm

Fuel feed

 3 Weber 40 DCZ 6 carbs

Ignition

 single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

 4-speed gearbox + overdrive + reverse,

 conventional differential

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,650 / 1,397 / 1,389 mm

Kerb weight

1,380 kg

Fuel tank

90 litres

Top Speed

 245km/h


Total

500 + 2 (prototype 1 & 2)
Previous page
Next page
Up

Ferrari 330 GT 2+2 s/n 6737GT

rebodied '62 GTO style ... unfinished

Ferrari 330 GT 2+2 s/n 6739GT

1964 Ferrari 330 GT 2+2 s/n 6539GT

Ferrari 330 GT 2+2 s/n 6743GT

rebodied '62 GTO style

Ferrari 330 GT 2+2 s/n 6745GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6747GT

engine separated from car

Ferrari 250 GT Lusso s/n 5947 - Sold €225.000.- incl. buyer's prem.

Ferrari 330 GT 2+2 s/n 6753GT

Ferrari 330 GT 2+2 s/n 6755GT

Ferrari 275 GTB longnose s/n 06655

Ferrari 330 GT 2+2 s/n 6757GT

Ferrari 330 GT 2+2 s/n 6759GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6763GT

converted to RHD

Ferrari 330 GT 2+2 s/n 6767GT

Ferrari 330 GT 2+2 s/n 6769GT

330 GT 2+2 Series I in pale yellow

Ferrari 330 GT 2+2 s/n 6771GT

Ferrari 330 GT 2+2 s/n 6771GT

Ferrari 330 GT 2+2 s/n 6775GT

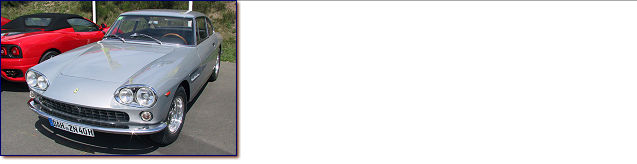

Ferrari 330 GT 2+2 s/n 6775GT ? "DAH ZN 40H",

Ferrari 330 GT 2+2 s/n 6777GT

Ferrari 330 GT 2+2 s/n 6781GT

ex John Lennon

Ferrari 330 GT 2+2 s/n 6783GT

275 GTB s/n 6683

Ferrari 330 GT 2+2 s/n 6793GT

Ferrari 330 GT 2+2 s/n 6795GT

rebodied as Touring Barchetta

Ferrari 330 GT 2+2 s/n 6797GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6799GT

Ferrari 330 GT 2+2 s/n 6801GT

engine separated from car



Ferrari 330 GT 2+2 s/n 6803GT

engine separated from car

275 GTB/2 Shortnose s/n 06703

Ferrari 330 GT 2+2 s/n 6811GT

Ferrari 275 GTB s/n 06711

Ferrari 330 GT 2+2 s/n 6813GT

Ferrari 330 GT 2+2 s/n 6815GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6821GT

Ferrari 330 GT 2+2 s/n 6823GT

Ferrari 330 GT 2+2 s/n 6825GT

parted out ... engine separated from car

Ferrari 330 GT 2+2 s/n 6625GT

Ferrari 330 GT 2+2 s/n 6829GT

converted to 2HL specs

250 GT/L, s/n 5729GT

Ferrari 330 GT 2+2 s/n 6833GT

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124 Sold $16500

Ferrari 330 GT 2+2 s/n 6835GT

Ferrari 330 GT 2+2 s/n 6837GT

Ferrari 330 GT 2+2 s/n 6843GT

Ferrari 330 GT 2+2 s/n 6845GT

project

Ferrari 330 GT 2+2 s/n 6847GT

Ferrari 250 GT Lusso s/n 5947 - Sold €225.000.- incl. buyer's prem.

Ferrari 330 GT 2+2 s/n 6849GT

Ferrari 330 GT 2+2 s/n 6851GT

Ferrari 330 GT 2+2 s/n 6857GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6859GT

Ferrari 330 GT 2+2 s/n 6861GT

Ferrari 330 GT 2+2 s/n 6863GT

Ferrari 330 GT 2+2 s/n 6869GT

330 GT 2+2 Series I in pale yellow

Ferrari 330 GT 2+2 s/n 6871GT

Ferrari 330 GT 2+2 s/n 6771GT

Ferrari 330 GT 2+2 s/n 6873GT

330 P2 style replica most likely only uses engine 6873GT

also seen with 4HL configuration with engine 7697GT

Ferrari 330 GT 2+2 s/n 6875GT

Ferrari 330 GT 2+2 s/n 6879GT

Ferrari 330 GT 2+2 s/n 6883GT

Ferrari 330 GT 2+2 s/n 6911GT

parted out

Ferrari 275 GTB s/n 06711

Ferrari 330 GT 2+2 s/n 6921GT

Ferrari 330 GT 2+2 s/n 6927GT

Ferrari 330 GT 2+2 s/n 6929GT

Ferrari 330 GT 2+2 s/n 6937GT
