Technical Specifications


Engine

Front longitudinal 60° V12,

 light alloy cylinder block and head

Timing gear

2 valves per cylinder,

 single overhead camshaft per cylinder bank

Bore and stroke

77 x 71 mm

Unitary and total displacement

330.62/3,967.44 cc

Compression ratio

8.8:1

Maximum power

300 bhp at 6,600 rpm

Fuel feed

 3 Weber 40 DCZ 6 carbs

Ignition

 single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

 4-speed gearbox + overdrive + reverse,

 conventional differential

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,650 / 1,397 / 1,389 mm

Kerb weight

1,380 kg

Fuel tank

90 litres

Top Speed

 245km/h


Total

455
Previous page
Next page
Up

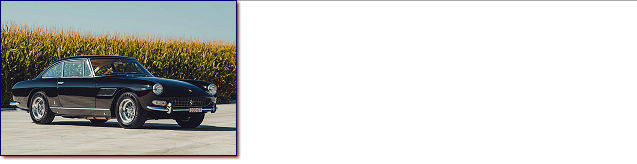

Ferrari 330 GT 2+2 s/n 8479GT

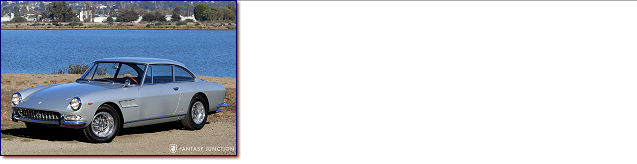

Ferrari 330 GT 2+2 s/n 8481GT

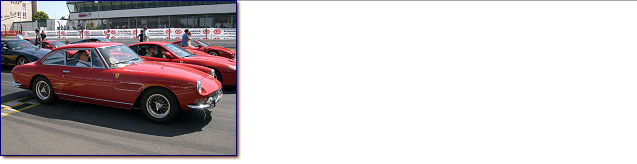

Ferrari 330 GT 2+2 Serie II, s/n 8481GT

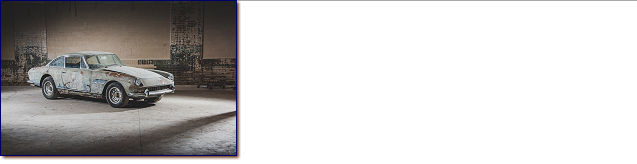

Ferrari 330 GT 2+2 s/n 8485GT

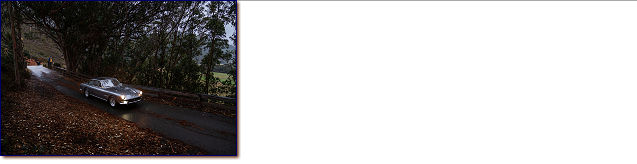

Ferrari 330 GT 2+2 s/n 8485GT

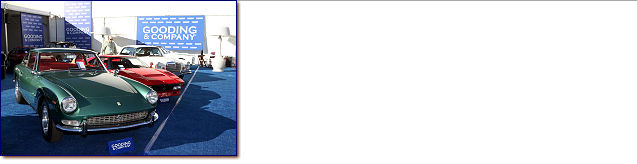

Ferrari 330 GT 2+2 s/n 8487GT
