Technical Specifications |
Engine |
Type |
Construction Number 102 or 108 |
Designer |
Lampredi |
Type |
V-12 |
Bore x Stroke |
84.0 x 68.0 |
customer cars |
80.0 x 74.5 |
Displacement |
4522cc customer cars - tipo 108 |
| 4494cc factory cars - tipo 102 | |
Compression Ratio |
9.0:1 |
Layout |
Single overhead |
Camshaft Drive |
Chain |
Cam Followers |
Roller |
Valve Design |
Inclined |
No. of Valves |
2 |
Values Springs |
Hairpin |
No. of Spark Plugs/Cylinder |
1 |
Ignition |
2 Magnetos |
No. of Carburetors |
3 |
Type of Carburetors |
40 IF 4/C or 42 DCZ |
Bhp @ rpm |
340 Bhp @ 7000rpm |
|
Clutch |
Multiple disc |
Transmission - No. of Gears |
4-Speed & reverse |
Transmission - Type |
All synchro |
Transmission - Location |
With engine |
Axle Ration |
3.44, 3.58 4.00 or 4.43:1 |
|
Type |
102 |
Chassis |
Welded Tube |
Frame |
Ladder Type |
Wheelbase |
2600 |
Track Front |
1325 |
Track Rear |
1320 |
Suspension |
Front Independent |
| Type Unequal length A arms | |
| Springs Transverse leaf | |
Suspension |
Rear Rigid axle |
| Springs Semi elliptic | |
Shocks |
Houdaille |
Brakes |
Drum |
Wheels |
Front Borrani RW 2989 52mm |
| Rear Borrani RW 2989 52mm | |
Tires |
Front 6.00 x 16 |
| Rear 7.00 x 16 |
General |
Body Builder |
Pinin Farina | Vignale |
Length cm |
Overall |
| Width | |
| Height |
Curb Weight kg |

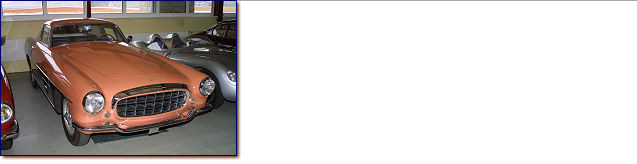

Ghia Coupe |
1 | 0476AM |

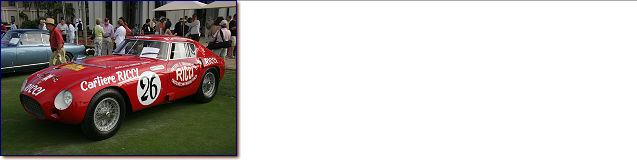

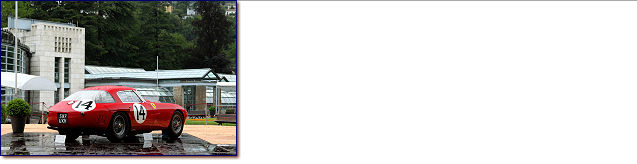

Pinin Farina Berlinetta |
9 | 0318AM, 0320AM, 0322AM, 0358AM, 0368AM, |
| 0378AM, 0380AM, 0416AM, 0472AM |
Pinin Farina Berlinetta Speciale |
2 | 0456AM, 0490AM |

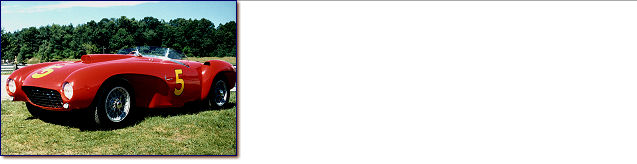

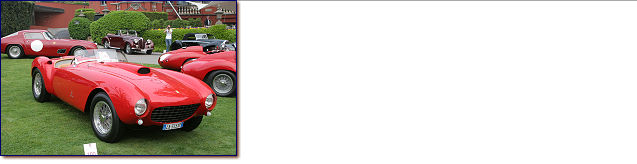

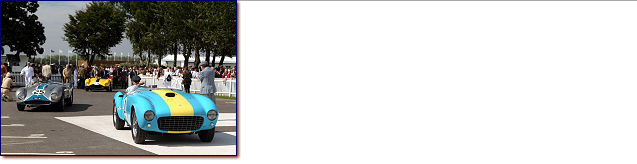

Pinin Farina Spyder |
12 | 0360AM, 0362AM, 0364AM, 0366AM, 0370AM, |
| 0372AM, 0374AM, 0376AM, 0382AM, 0412AM, | |
| 0450AM, 0460AM |
Vignale Spyder |
1 | 0286AM |

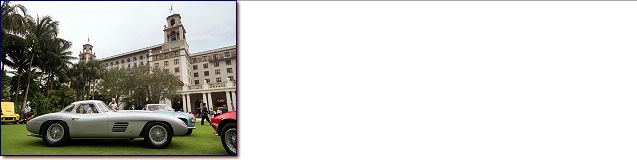

Scaglietti Berlinetta |
1 | 0402AM |
|
Total |
26 |
