Technical Specifications


Engine

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

300 hp @ 8000 rpm

Valve actuation

 twin overhead camshafts per bank,

 two valves per cylinder

Fuel feed

six Weber 40 DCN 9 carburettors

Ignition

single spark plug per cylinder, two coils

Lubrication

dry sump

Clutch

single-plate

Top speed

268 km/h


Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

capacity 94 litres

Front tyres

205 x 14

Rear tyres

205 x 14


Chassis

Frame

tubular steel

Front suspension

independent,

 unequal-length wishbones,

 coil springs over telescopic shock absorbers,

 anti-roll bar

Rear suspension

independent,

 unequal-length wishbones,

 coil springs over telescopic shock absorbers,

 anti-roll bar

Brakes

discs

Wheelbase

2400 mm

Front track

1401 mm

Rear track

1417 mm

Weight

1100 kg (dry)


Wheels

Front

Borrani RW 3077

Rear

Borrani RW 3019



General

Type

 two-seater, Berlinetta

Body Designer

Pininfarina

Body Builder

Scaglietti


Length cm
Overall
Width
Height

Curb Weight kg

1100 kg (dry)


Performance

Top speed

 268 km/h



Total

330 + 1 = 331


Previous page
Next page
Up

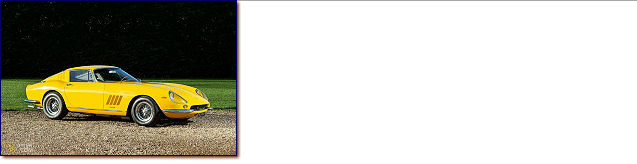

Ferrari 275 GTB/4 s/n 10361
