Technical Specifications


Engine

Type

 front, longitudinal 60° V12

Bore/stroke

 77 x 71 mm

Unitary displacement

 330.62 cc

Total displacement

 3967.44 cc

Compression ratio

 8.8 : 1

Maximum power

 221 kW (300 hp) at 7000 rpm

Power per litre

 76 hp/l

Valve actuation

 single overhead camshaft per bank,

 two valves per cylinder

Fuel feed

 three Weber 40 DCZ/6 carburettors

Ignition

 single spark plug per cylinder, two coils

Lubrication

 wet sump

Clutch

 single-plate


Chassis

Frame

 tubular steel

Front suspension

 independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

 independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers, anti-roll bar

Brakes

 discs

Transmission

 5-speed + reverse

Steering

 worm and roller

Fuel tank

 capacity 90 litres

Front tyres

 205 x 14

Rear tyres

 205 x 14


Bodywork

Type

 two-seater coupé

Length

 4470 mm

Width

 1665 mm

Height

 1282 mm

Wheelbase

 2400 mm

Front track

 1401 mm

Rear track

 1417 mm

Weight

 1300 kg (dry)


Performance

Top speed

 242 km/h



Total

600


Previous page
Next page
Up

Ferrari 330 GTC s/n 10411

Ferrari 275 GTB s/n 10311

Ferrari 330 GTC s/n 10415

Ferrari 330 GTC s/n 10421

Ferrari 275 GTB4 s/n 10021

Ferrari 330 GTC s/n 10425

Ferrari 330 GTC s/n 10429

Ferrari 330 GTC s/n 10433

275 GTB/4 s/n 10333

Ferrari 330 GTC s/n 10437

Ferrari 330 GTC s/n 10441

Ferrari 330 GTC PF Speciale s/n 10241

Ferrari 330 GTC s/n 10445

Ferrari 330 GTC s/n 10449

Ferrari 330 GTC s/n 10455

Ferrari 330 GTC, s/n 9555

Ferrari 330 GTC s/n 10457

Ferrari 330 GTC s/n 10463

Ferrari 330 GTC s/n 10467

Ferrari 330 GTC s/n 10471

Ferrari 330 GTC s/n 10475

Ferrari 275 GTB/4 s/n 09475

Ferrari 330 GTC s/n 10477

Ferrari 275 GTB/4 s/n 10177 Owner Richard Colton

Ferrari 330 GTC s/n 10483

Ferrari 330 GTC s/n 10183, s/n 10183

Ferrari 330 GTC s/n 10487

Ferrari 330 GTC s/n 10489

Ferrari 330 GTC s/n 10493

Ferrari 330 GTC s/n 10495

Ferrari 330 GTC s/n 10501

Ferrari 275 GTB/4, s/n 10201



Ferrari 330 GTC s/n 10503

Ferrari 330 GTC s/n 10509

Ferrari 330 GTC s/n 10513

Ferrari 330 GTC s/n 10517

Ferrari 330 GTC s/n 10521

Ferrari 330 GTC s/n 10529

275 GTB/4 s/n 10333

Ferrari 330 GTC s/n 10535

Ferrari 330 GTC s/n 10539

Ferrari 330 GTC s/n 10539

Ferrari 330 GTC s/n 10541

Ferrari 330 GTC s/n 10547

Ferrari 330 GTC s/n 10555

Ferrari 330 GTC s/n 10571

Ferrari 275 GTB/4 s/n 09475

Ferrari 330 GTC s/n 10573

Ferrari 275 GTB/4 s/n 10177 Owner Richard Colton

Ferrari 330 GTC s/n 10575

Ferrari 330 GTC s/n 10575

Ferrari 330 GTC s/n 10579

Ferrari 330 GTC s/n 10579

Ferrari 365 GTC s/n 10581

Speciale 330 GTC with 365 engine

Ferrari 330 GTC s/n 10585

Ferrari 330 GTC s/n 10585

Ferrari 330 GTC s/n 10587

Ferrari 330 GTC s/n 10591

Ferrari 330 GTC s/n 10611

Ferrari 330 GTC s/n 10617

Ferrari 330 GTC s/n 10623

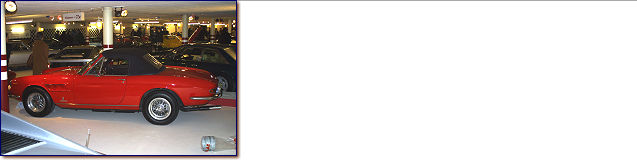

Spyder Conversion
