Technical Specifications


Engine

Type

 front, longitudinal 60° V12

Bore/stroke

 81 x 71 mm

Unitary displacement

 365.86 cc

Total displacement

 4390.35 cc

Compression ratio

 8.8 : 1

Maximum power

 235 kW (320 hp) at 6600 rpm

Power per litre

 73 hp/l

Valve actuation

 single overhead camshaft per bank,

 two valves per cylinder

Fuel feed

 three Weber 40 DFI/5 carburettors

Ignition

 single spark plug per cylinder, two coils

Lubrication

 wet sump

Clutch

 single-plate


Chassis

Frame

 tubular steel

Front suspension

 independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers, anti-roll bar

Rear suspension

 independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers, anti-roll bar

Brakes

 discs

Transmission

 5-speed + reverse

Steering

 worm and roller

Fuel tank

 capacity 90 litres

Front tyres

 205 x 14

Rear tyres

 205 x 14


Bodywork

Type

 two-seater coupé

Length

 4470 mm

Width

 1670 mm

Height

 1300 mm

Wheelbase

 2400 mm

Front track

 1401 mm

Rear track

 1417 mm

Weight

 1350 kg (dry)


Performance

Top speed

 250 km/h



Total

150
Previous page
Next page
Up

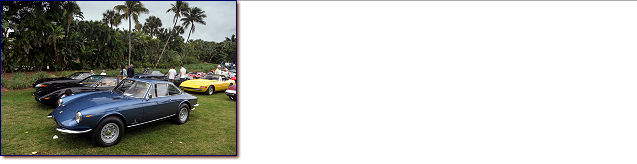

Ferrari 365 GTC s/n 11823
