Technical Specifications



Engine

213

Type

front, longitudinal 60° V12

Bore/stroke

77 x 58.8 mm

Unitary displacement

273.81 cc

Total displacement

3285.72 cc

Compression ratio

9.2 : 1

Maximum power

191 kW (260 hp) at 7000 rpm

 239 hp 7000 - 77x58 - 3286 - 6507


Valve actuation

single overhead camshaft per bank

 two valves per cylinder

Fuel feed

 three or six 40 Weber DCN/3 carburettors

 Weber 6*40 DCN3

 Weber 6*40 DCNG

 Weber 3*40 DCZ6

Ignition

single spark plug per cylinder, two coils

Lubrication

wet sump

Clutch

single-plate


Chassis

563

Frame

tubular steel

Front suspension

 independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers,

 anti-roll bar

Rear suspension

independent, unequal-length wishbones,

 coil springs over telescopic shock absorbers,

 anti-roll bar

Brakes

discs

Transmission

5-speed + reverse

Steering

worm and roller

Fuel tank

 capacity 94 litres

Tyres


Front

  195 or 205 x 14

Rear

  195 or 205 x 14


Borrani

RW 3847 - 6-1/2" x 14" 32

 RW 4039 7" x 14" 32

Compagnolo/starburst

6-1/2" x 14"


Bodywork

Type

two-seater berlinetta

Length

4350 mm

Width

1675 mm

Height

1250 mm

Wheelbase

2400 mm

Front track

1377 mm

Rear track

1393 mm

Kerb weight

1100 kg


Performance


Top speed

 242 km/h


Total

200



Previous page
Next page
Up

Ferrari 275 GTS s/n 06001

Prototype (1st of 3)


Ferrari 275 GTS s/n 06005

Prototype (2nd of 3)

Ferrari 250 LM s/n 5905

Ferrari 275 GTS s/n 06315

Prototype (3rd of 3)

Paris show car


Ferrari 275 GTS s/n 06417

RHD

Earls Court London show car

Ferrari 275 GTS s/n 06461

Ferrari 275 GTS s/n 06461

Ferrari 275 GTS s/n 06805

Bruessels show car

Ferrari 275 GTS s/n 06807

Ferrari 275 GTS s/n 06809

275 GTS red/black s/n 06809 - Lot 131

Ferrari 275 GTS s/n 06817

Ferrari 275 GTS s/n 06819

Ferrari 275 GTS s/n 06853

Ferrari 275 GTS s/n 06855

Ferrari 275 GTS s/n 06855

Ferrari 275 GTS s/n 06865

Ferrari 275 GTS s/n 06867

Ferrari 275 GTS s/n 06867

Ferrari 275 GTS s/n 06877

Ferrari 275 GTS s/n 06889

Ferrari 275 GTS s/n 06889

Ferrari 275 GTS s/n 06909

engine installed 07409 (275 GTS)

Ferrari 275 GTS s/n 06919

Ferrari 275 GTS s/n 06923

275 GTS s/n ?

Ferrari 275 GTS s/n 06959

Ferrari 275 GTS s/n 06963

Ferrari 275 GTS s/n 06977

Ferrari 275 GTS s/n 06987

Ferrari 275 GTS s/n 06989

Ferrari 275 GTS, s/n 6989GT

Ferrari 275 GTS s/n 06999

Ferrari 275 GTS s/n 07007

Ferrari 275 GTS s/n 07013

Ferrari 275 GTS s/n 07019

Ferrari 275 GTS s/n 07021

Ferrari 275 GTS s/n 07027

Ferrari 275 GTS s/n 07031

Ferrari 275 GTB s/n 06931

Ferrari 275 GTS s/n 07035

Ferrari 275 GTS s/n 07039

Ferrari 275 GTS s/n 07049

Ferrari 275 GTS s/n 07057

Ferrari 275 GTS s/n 07065

Ferrari 275 GTS s/n 07071

Ferrari 275 GTS s/n 07071

Ferrari 275 GTS s/n 07079

Ferrari 275 GTS s/n 07089

Ferrari 275 GTS s/n 07105

Ferrari 275 GTS s/n 07121

Ferrari 275 GTS s/n 07133

Ferrari 330 GT 2+2 s/n 6533GT - Lot 124 Sold $16500

Ferrari 275 GTS s/n 07143

Ferrari 275 GTS s/n 07153

Ferrari 275 GTS s/n 07163

Ferrari 275 GTS s/n 07171

engine from 5483GT 330 GT 2+2

Ferrari 275 GTS s/n 07189


Ferrari 275 GTS s/n 07203

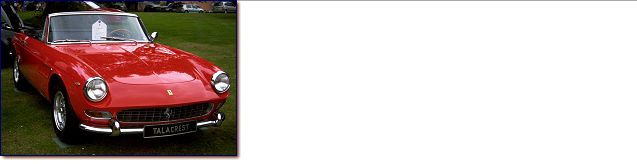

275 GTS s/n 07203, displayed by Talacrest Ltd.

Ferrari 275 GTS s/n 07205

Ferrari 275 GTS s/n 07209

Ferrari 250 GT/L s/n 5045GT
