Technical Specifications


Engine

Front longitudinal 60° V12,

 light alloy cylinder block and head

Timing gear

2 valves per cylinder,

 single overhead camshaft per cylinder bank

Bore and stroke

77 x 71 mm

Unitary and total displacement

330.62/3,967.44 cc

Compression ratio

8.8:1

Maximum power

300 bhp at 6,600 rpm

Fuel feed

 3 Weber 40 DCZ 6 carbs

Ignition

 single spark plug per cyclinder, 2 coils

Transmission

Dry, single-plate clutch,

 4-speed gearbox + overdrive + reverse,

 conventional differential

Chassis

Elliptical section steel tubes

Front suspension

Independent, unequal-length wishbones, coil springs

Rear suspension

Live axle, semi-elliptic leaf springs

Wheelbase, front and rear track

2,650 / 1,397 / 1,389 mm

Kerb weight

1,380 kg

Fuel tank

90 litres

Top Speed

 245km/h


Total

500 + 2 (prototype 1 & 2)
Previous page
Next page
Up

Ferrari 330 GT 2+2 s/n 6063GT

Ferrari 250 GT Lusso s/n 5463GT

Ferrari 330 GT 2+2 s/n 6065GT

engine separated from car

rebodied GTO style

Ferrari 330 GT 2+2 s/n 6067GT

rebodied 330 P4 style

engine parts for sale

250 GT Lusso s/n 5567GT

Ferrari 330 GT 2+2 s/n 6069GT

330 GT 2+2 Series I in pale yellow

Ferrari 330 GT 2+2 s/n 6071GT

250 GT Lusso, s/n 5871GT

Ferrari 330 GT 2+2 s/n 6073GT

Ferrari 330 GT 2+2 s/n 6075GT

Ferrari 250 LM, s/n 5975

Ferrari 330 GT 2+2 s/n 6077GT

Ferrari 330 GT 2+2 s/n 6079GT

body shell only

Ferrari 330 GT 2+2 s/n 6081GT

500 Superfast s/n 5981SA

Ferrari 330 GT 2+2 s/n 6083GT

Ferrari 500 Superfast s/n 5983SF

Ferrari 330 GT 2+2 s/n 6085GT

rebodied GTO style

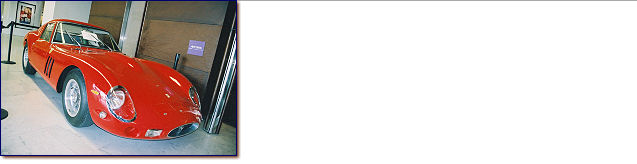

Ferrari 330 GT s/n 6085 - 250 GTO "Favre" replica

Ferrari 330 GT 2+2 s/n 6087GT

Ferrari 330 GT 2+2 s/n 6089GT

Ferrari 330 GT 2+2 s/n 6091GT

250 LM s/n 5891

Ferrari 330 GT 2+2 s/n 6093GT

Ferrari 250 LM Scaglietti Berlinetta s/n 5893

Ferrari 330 GT 2+2 s/n 6095GT

project in 1994

Ferrari 330 GT 2+2 s/n 6097GT

Ferrari 250 LM s/n 5897

Ferrari 330 GT 2+2 s/n 6099GT

Ferrari 330 GT 2+2 s/n 6101GT



Ferrari 330 GT 2+2 s/n 6103GT

Ferrari 250 LM s/n 5903

Ferrari 330 GT 2+2 s/n 6109GT

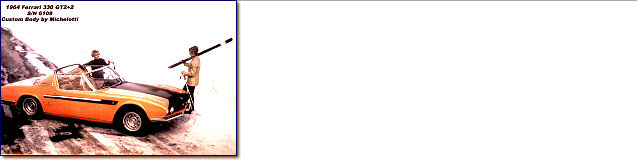

Michelotti body work

330 GT 2+2 s/n 6109

Ferrari 330 GT 2+2 s/n 6111GT

Ferrari 330 GT 2+2 s/n 6113GT

Ferrari 330 GT 2+2 s/n 6115GT

Ferrari 330 GT 2+2 S1 s/n 6015

Ferrari 330 GT 2+2 s/n 6117GT

engine separated from car

"project", chassis, body only

Ferrari 330 GT 2+2 s/n 6121GT

Ferrari 275 GTB Competizione Speciale s/n 06021

Ferrari 330 GT 2+2 s/n 6123GT

Ferrari 330 GT 2+2 s/n 6125GT

Ferrari 250 LM PF Coupe Speciale s/n 6025

Ferrari 330 GT 2+2 s/n 6127GT

engine separated from car

Ferrari 330 GT 2+2 s/n 6129GT

250 GT/L, s/n 5729GT

Ferrari 330 GT 2+2 s/n 6131GT

Ferrari 330 GT 2+2 s/n 6133GT

Ferrari 330 GT 2+2 s/n 6135GT

Ferrari 330 GT 2+2 s/n 6137GT

Ferrari 330 GT 2+2 Series I s/n 5837GT ... GTO Rebody

Ferrari 330 GT 2+2 s/n 6139GT

500 Superfast Series I s/n 06039

Ferrari 330 GT 2+2 s/n 6141GT

500 Superfast s/n 6041SF

Ferrari 330 GT 2+2 s/n 6143GT

Ferrari 500 Superfast, s/n 6043SF

Ferrari 330 GT 2+2 s/n 6145GT

Ferrari 330 GT 2+2 s/n 6147GT

Ferrari 250 GT Lusso s/n 5947 - Sold €225.000.- incl. buyer's prem.

Ferrari 330 GT 2+2 s/n 6149GT

Ferrari 330 GT 2+2 s/n 6151GT

parted out ... engine separated from car

Ferrari 330 GT 2+2 s/n 6153GT

Ferrari 250 GT/L, s/n 5953GT

Ferrari 330 GT 2+2 s/n 6155GT

330 GT s/n 6155GT

Ferrari 330 GT 2+2 s/n 6157GT

Ferrari 330 GT 2+2 s/n 6159GT

Ferrari 330 GT 2+2 s/n 6161GT

Ferrari 330 GT 2+2 s/n 6163GT

Ferrari 250 GT Lusso s/n 5463GT

Ferrari 330 GT 2+2 s/n 6165GT

parted out

Ferrari 330 GT 2+2 s/n 6169GT
