Technical Specifications |
Engine |
Engine |
Front longitudinal 60° V12, |
light alloy cylinder block and head |
Timing gear |
2 valves per cylinder, single overhead camshaft per |
cylinder bank |
Bore and stroke |
73 x 58.8 mm |
Unitary and total displacement |
246.10 cc / 2953.21 cc |
Compression ratio |
8.5 : 1 |
Maximum power |
220 hp at 7000 rpm |
Transmission |
Multi-plate clutch, 4 speed-gearbox + reverse, |
conventional differential |
Chassis |
Elliptical section steel tubes |
Front suspension |
Independent, double wishbones, |
transverse lower leaf spring | |
Rear suspension |
Live axle, longitudinal leaf springs |
Wheelbase, front and rear track |
2,600/1,354/1,349 mm |
Kerb weight |
1,050 kg |
Front tyres /rear tyres |
6.00-16 / 6.00-16 |
Fuel tank |
100 litres |
|
Test Sheet |

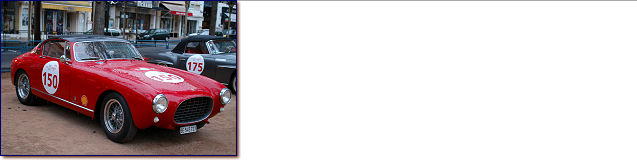

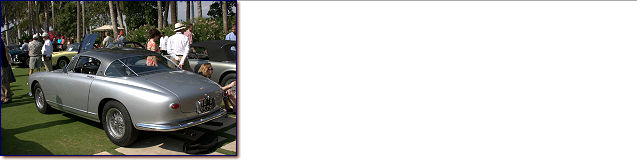

Pinin Farina Berlinetta |
4 | 0369GT, 0385GT, 0393GT, 0415GT |

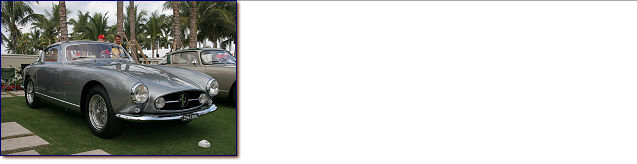

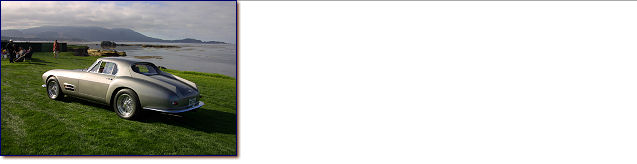

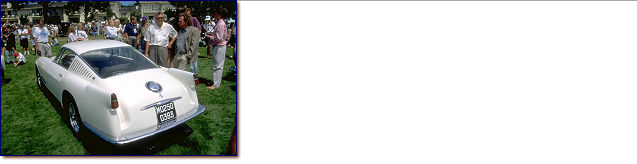

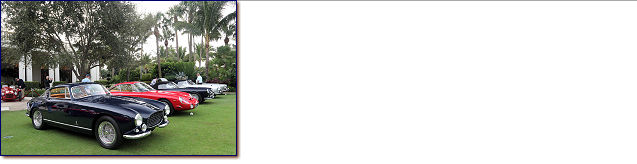

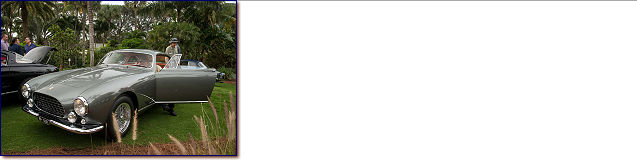

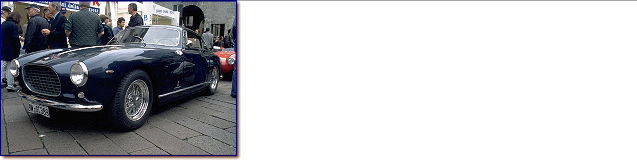

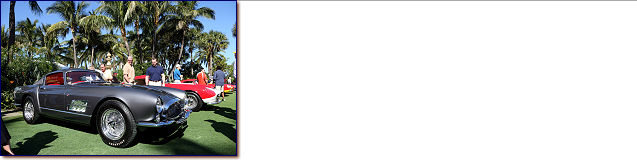

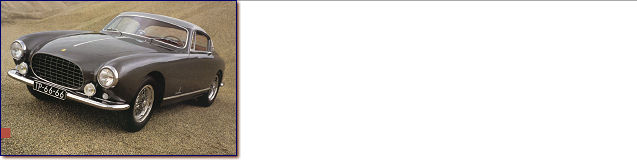

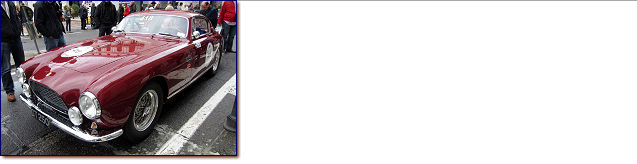

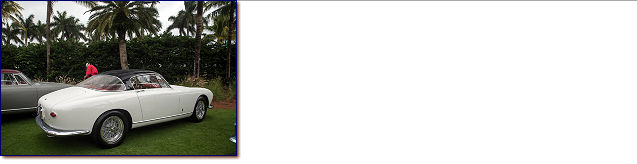

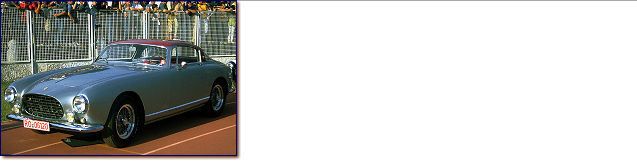

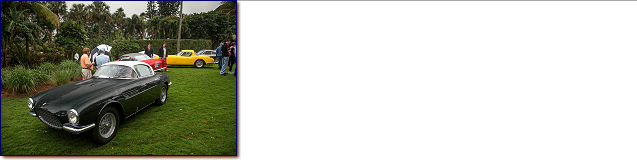

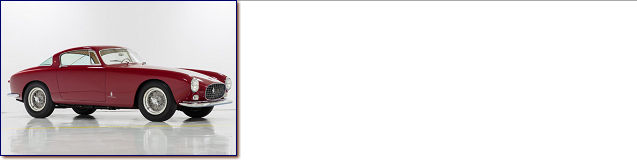

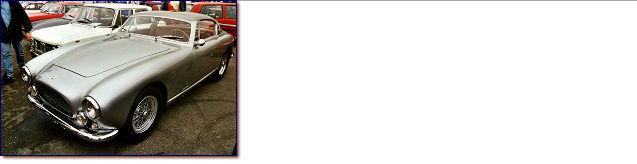

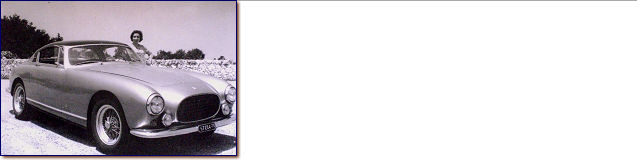

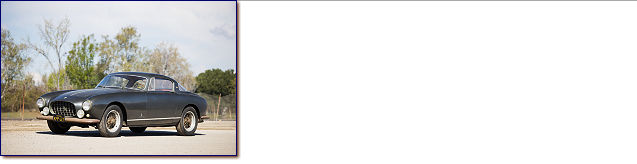

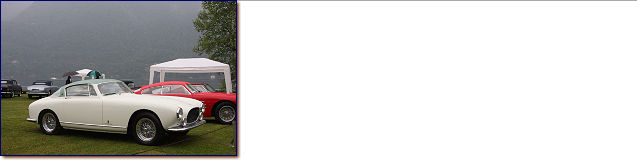

Pinin Farina Coupe |
28 | 0357GT, 0361GT, 0363GT, 0365GT, 0367GT, |
0371GT, 0373GT, 0375GT, 0377GT, 0379GT, | |
0381GT, 0383GT, 0387GT, 0389GT, 0391GT, | |
0395GT, 0397GT, 0399GT, 0401GT, 0405GT, | |
0407GT, 0409GT, 0411GT, 0413GT, 0417GT, | |
0419GT, 0421GT, 0427GT |
Pinin Farina Coupe Speciale |
1 | 0403GT |

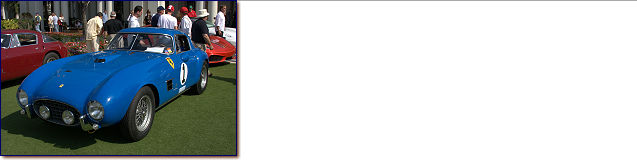

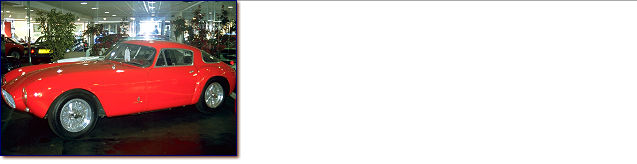

Scaglietti Berlinetta |
1 | 0425GT |

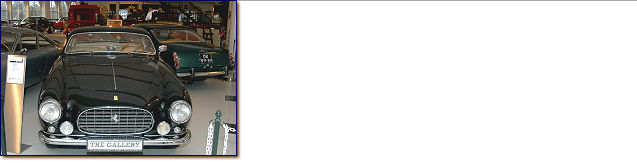

Vignale Coupe |
1 | 0359GT |
Total |
35 |
