Technical Specifications

Engine

Type	front, longitudinal 60° V12
Bore/stroke	81 x 71 mm
Unitary displacement	365.86 cc
Total displacement	4390.35 cc
Compression ratio	8.8 : 1
Maximum power	235 kW (320 hp) at 6600 rpm
Power per litre	73 hp/l
Valve actuation	single overhead camshaft per bank,
	two valves per cylinder
Fuel feed	three Weber 40 DFI/5 carburettors
Ignition	single spark plug per cylinder, two coils
Lubrication	wet sump
Clutch	single-plate

Chassis

Frame	tubular steel
Front suspension	independent, unequal-length wishbones,
	coil springs over telescopic shock absorbers, anti-roll bar
Rear suspension	independent, unequal-length wishbones,
	coil springs over telescopic shock absorbers, anti-roll bar
Brakes	discs
Transmission	5-speed + reverse
Steering	worm and roller
Fuel tank	capacity 90 litres
Front tyres	205 x 14
Rear tyres	205 x 14

Bodywork

Type

two-seater coupé

Length	4470 mm
Width	1670 mm
Height	1300 mm
Wheelbase	2400 mm
Front track	1401 mm
Rear track	1417 mm
Weight	1350 kg (dry)

Performance

Top speed

250 km/h

Total

150

Ferrari 365 GTC s/n 12303

Ferrari 365 GTC s/n 12311

Ferrari 365 GTC s/n 12315

Ferrari 365 GTC s/n 12321

Ferrari 365 GT 2+2 s/n 11633

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12329

Ferrari 365 GTC s/n 12335

365 GTC s/n 12135

Ferrari 365 GTC s/n 12339

Ferrari 365 GTC s/n 12343

Ferrari 365 GTC s/n 12347

Ferrari 365 GTC s/n 12351

Ferrari 365 GTC s/n 12355

Ferrari 365 GTC s/n 12359

365 GTC s/n 12359

Ferrari 365 GTC s/n 12363

365 GTS s/n 12163 with rare hardtop (originally painted black)

Ferrari 365 GTC s/n 12367

Ferrari 365 GTC s/n 12371

Ferrari 365 GTC s/n 12375

Ferrari 365 GTC, s/n 12375

Ferrari 365 GTC s/n 12379

Ferrari 365 GTC s/n 12079, Ferrari 330GT 2+2 s/n 8025GT

Ferrari 365 GTC s/n 12383

Ferrari 330 GTC s/n 11183

Ferrari 365 GTC s/n 12387

Ferrari 365 GTC, s/n 12387

Ferrari 365 GTC s/n 12391

Ferrari 365 GTC s/n 12395

Ferrari 330 GTC s/n 11395

Ferrari 365 GTC s/n 12399

365 GTC s/n 12099

Ferrari 365 GTC s/n 12403

Ferrari 365 GTC s/n 12407

Ferrari 365 GTC s/n 12411

Ferrari 365 GTC s/n 12415

Ferrari 365 GTC s/n 12421

Ferrari 365 GTC s/n 12425

Ferrari 365 GTC s/n 12325

Ferrari 365 GTC s/n 12429

Ferrari 365 GTC s/n 12433

Ferrari 365 GTC s/n 12437

Ferrari 330 GTC s/n 11137

Ferrari 365 GTC s/n 12439

Ferrari 365 GTC s/n 12441

Ferrari 330 GTC s/n 11441

Ferrari 365 GTC s/n 12443

Ferrari 365 GTC s/n 12447

365 GTC s/n 12447

Ferrari 365 GTC s/n 12449

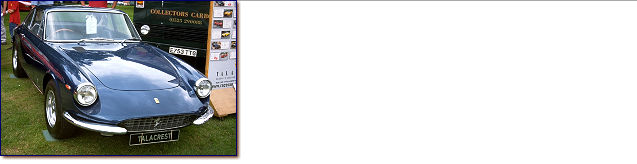

365 GTC s/n 12449 of Talacrest Ltd.

Ferrari 365 GTC s/n 12461

Ferrari 365 GTC s/n 12471

Ferrari 365 GTC s/n 12471

Ferrari 365 GTC s/n 12487

Ferrari 365 GTC s/n 12499

365 GTC s/n 12099
